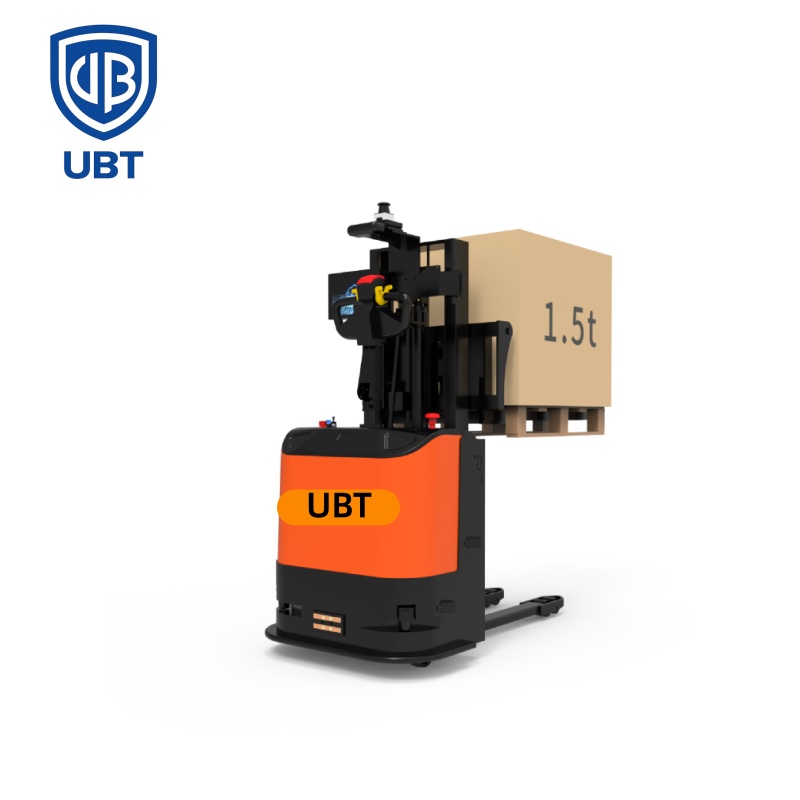

Rhino Autonomous Stacker（UBOT30F）
The UBT Hercules Autonomous Forklift is a heavy-duty autonomous forklift with a 1.5-ton payload capacity. Featuring LiDAR SLAM and 3D vision fusion navigation, it enables rapid deployment without magnetic tracks or reflectors. It supports automatic pallet recognition, dynamic obstacle avoidance, multi-forklift scheduling, and WMS/ERP integration for 24/7 unmanned pallet handling and line-side delivery.
Technische Daten
| Max load | 1000kg |
|---|---|
| Navigation |
Beschreibung
Drive Type：Electronic Steering & AC Servo Motor
Maximum Load Capacity：1,500KG
Load Center ：500mm
Service weight (including battery)：870KG
Vehicle dimensions：1,610mm(L)x775mm(W)x1,920mm(H)
Fork Dimension：1,150mm/160mm/60mm
Outer Fork Width：685mm
Fork Lifting Height ：2,585mm
Minimum Fork Height ：85mm
Max mast height (in operation)：3,050mm
Ground clearance ( wheelbase center)：30mm
Turning radius：1,500mm
Tire type (load wheel/drive wheel/auxiliary wheel)：Polyurethane wheel
Tire size, Front：210mmx70mm
Tire size, Rear ：80mm×70mm
Tire size, Auxiliary wheel：100mmx50mm
Wheelbase：1,029mm
